Where Your Boards Come to Life

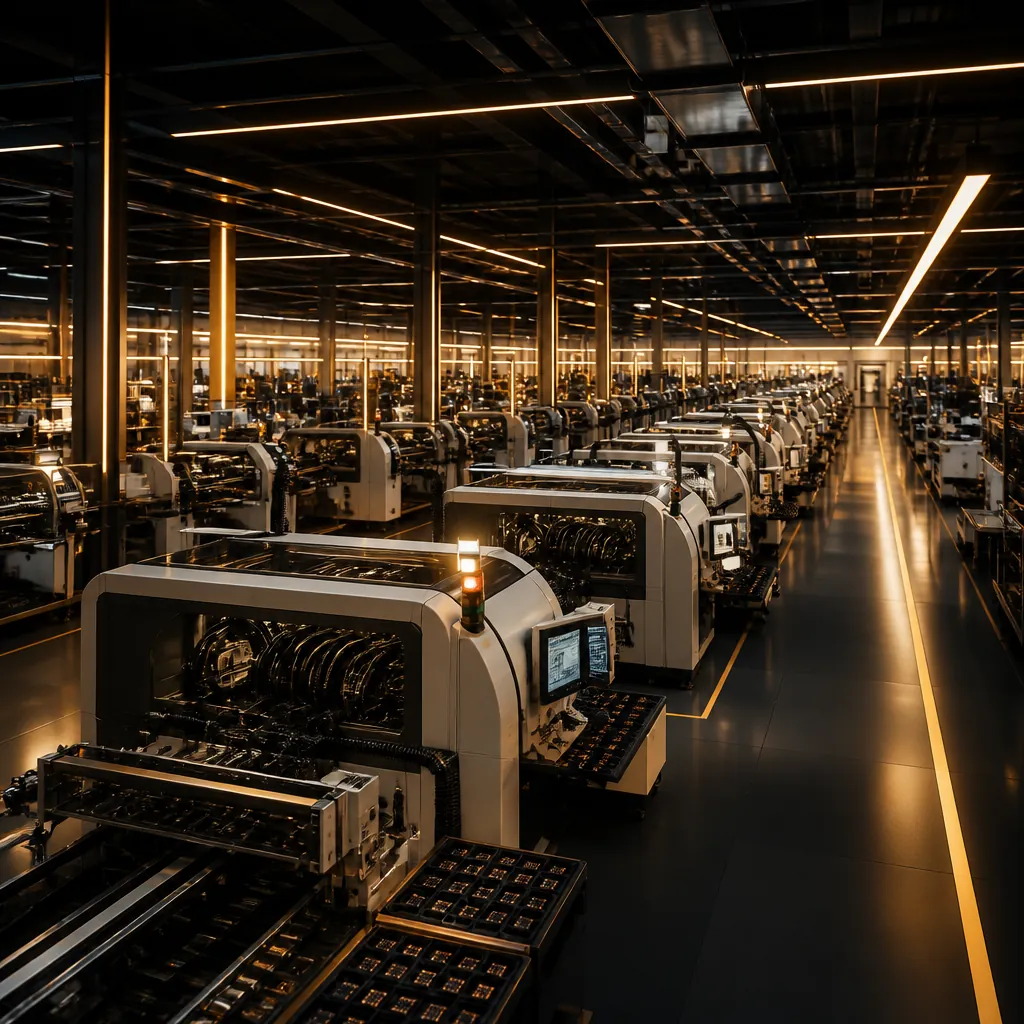

15,000㎡ facility. 500+ staff. 8 SMT lines. PCB fabrication, assembly, testing, and logistics — all under one roof in Shenzhen, China.
Dedicated 6,000㎡ clean-room environment for bare PCB production. Automated etching, plating, drilling, and solder mask lines. Separate areas for prototype and volume production to avoid cross-contamination.

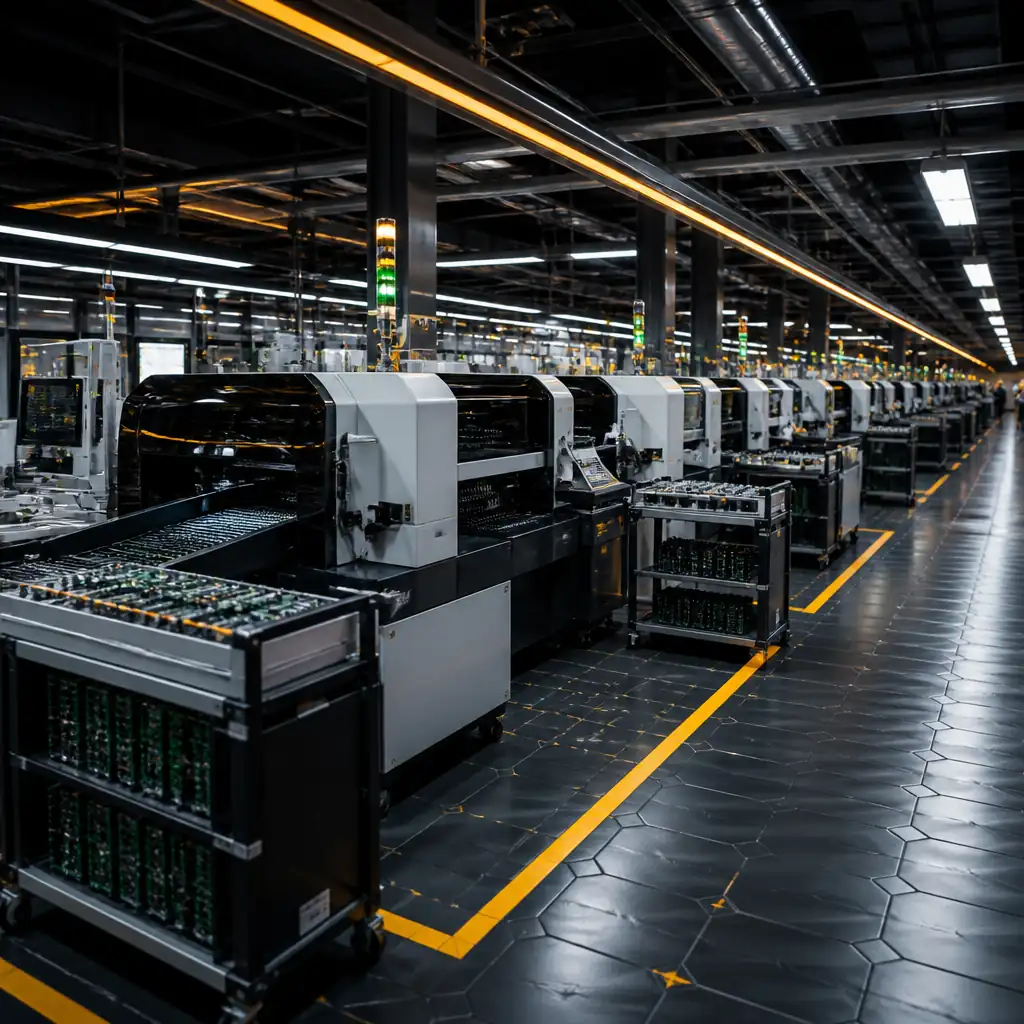

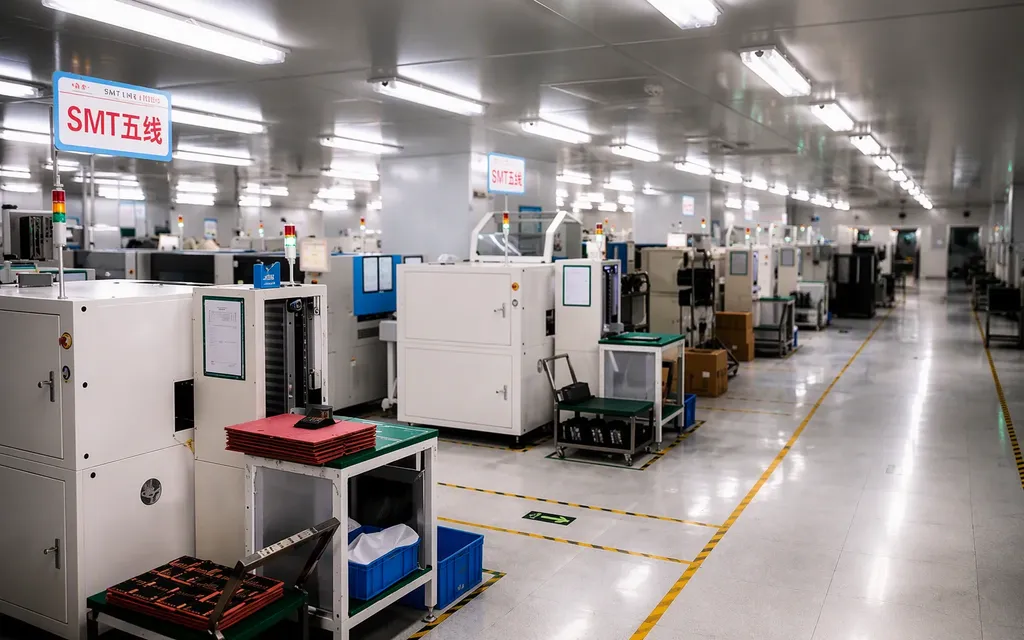

Eight fully automated high-speed SMT lines in a 4,000㎡ ESD-protected area. Each line: solder paste printer → 3D SPI → high-speed placers → 10-zone reflow → inline AOI. Capacity: 8M placements/day.
800㎡ dedicated QC laboratory. Environmental chambers, X-Ray (2D + CT), microsection lab, impedance TDR testing, and custom functional test stations. ISO/IEC 17025 calibrated equipment with full traceability.
2,500㎡ assembly and warehouse area for enclosure integration, wiring, conformal coating, and final packaging. Temperature-controlled component storage. Export packaging station with ESD-safe packing materials.
Every piece of equipment in our facility is selected for precision and reliability. We invest in industry-leading brands — Yamaha, Koh Young, Omron, Heller, Polar Instruments — and maintain calibrated, documented performance records.
Our equipment maintenance program runs on predictive schedules: monthly calibration checks, quarterly preventive maintenance, and annual full-service overhauls. Every machine has a digital maintenance log accessible to auditors.
| Equipment | Brand / Model | Qty | Zone |
|---|---|---|---|
| High-Speed Chip Shooter | Yamaha YSM20R | 8 | SMT |
| Multi-Function Placer | Yamaha YSM10 | 8 | SMT |
| 3D Solder Paste Inspection | Koh Young KY8030-3 | 8 | SMT |

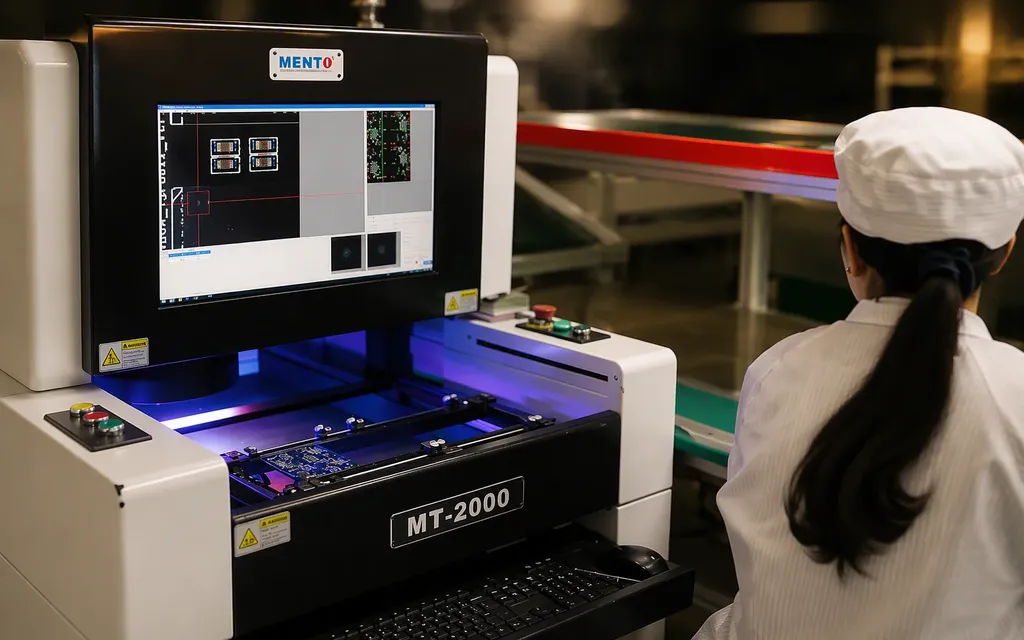

| Inline 3D AOI | Omron VT-S1080 | 8 | SMT |

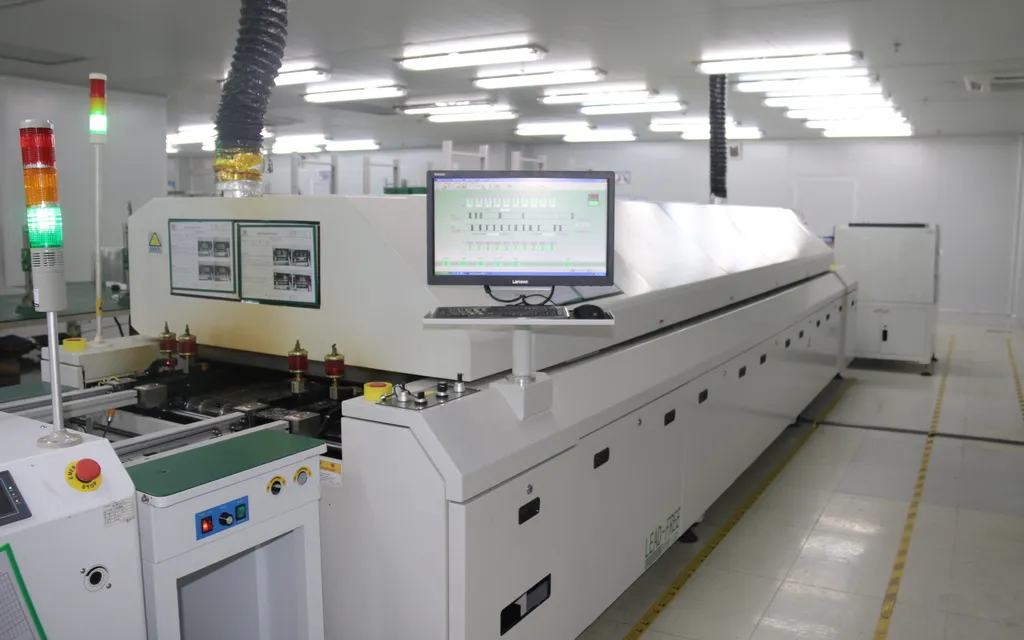

| 10-Zone Reflow Oven | Heller 1913MK5 | 8 | SMT |
| Selective Wave Solder | Ersa Versaflow 4/55 | 3 | SMT |
| Selective Coating Robot | Nordson Asymtek SL-940E | 2 | Box-Build |
| 2D/CT X-Ray System | GE Phoenix Microme|x | 2 | QC Lab |
| Impedance TDR Tester | Polar Instruments CITS880s | 2 | QC Lab |
| Digital Microscope | Keyence VHX-7000 | 3 | QC Lab |
| Flying Probe Tester | Seica Pilot V8 | 4 | PCB Fab |
| 6-Head CNC Drilling | Schmoll MX1-6 | 8 | PCB Fab |
| LDI Exposure System | Orbotech Paragon 9000 | 2 | PCB Fab |
| VCP Plating Line | Atotech Uniplate | 2 | PCB Fab |
| Thermal Cycling Chamber | Espec AR-1100 | 4 | QC Lab |
| HI-POT / Ground Bond | Chroma 19032 | 3 | Box-Build |
Upload Gerber + BOM — 24h quote with free DFM review.
