1. Introduction to PCB Materials
PCB materials are the building blocks of electronic devices, directly impacting thermal performance, signal integrity, and overall reliability. Selecting the right material ensures efficiency and durability across various applications. With over 25 years of expertise, HUA XING PCBA Ltd. specializes in guiding customers to choose materials that optimize functionality and cost.

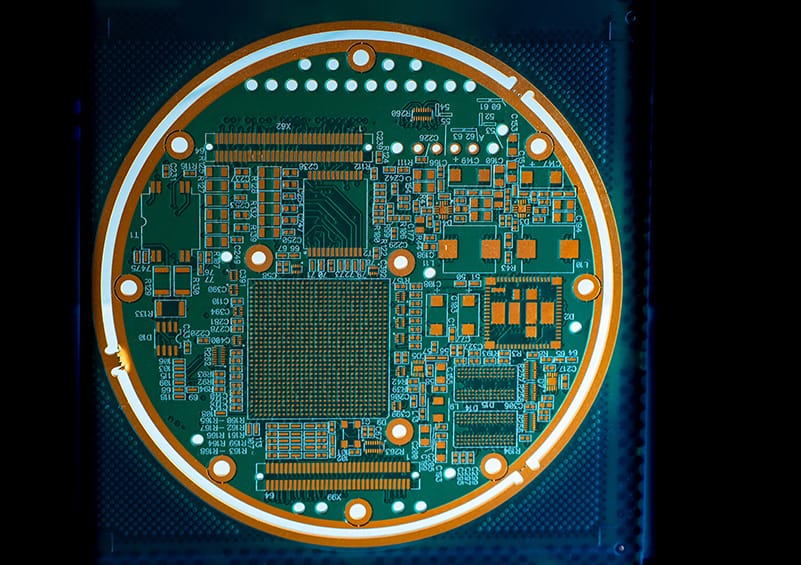

2. Types of PCB Materials
Here are some of the most common PCB materials used today:
- FR-4: A versatile fiberglass and epoxy resin composite, suitable for most consumer electronics.
- CEM1 and CEM2: Cost-effective options for simpler applications.
- Metal Substrates: Perfect for managing heat dissipation, widely used in automotive and LED lighting systems.
- Ceramic: Preferred for high-temperature and high-power applications due to its superior thermal and electrical properties.
3. Key Properties of PCB Materials
Understanding material properties helps ensure compatibility with application requirements. Below is an expanded comparison of key materials:
| Material Type | Thermal Conductivity (W/m·K) | Dielectric Constant | Glass Transition Temperature (Tg °C) | Cost Level | Typical Application |
|---|---|---|---|---|---|
| FR-4 | 0.3 | 4.2 – 4.8 | 130 – 180 | Low | Smartphones, laptops, household electronics |
| CEM1 | 0.2 | 4.0 – 4.5 | 130 | Very Low | Low-cost consumer products |
| CEM2 | 0.2 | 4.0 – 4.5 | 150 | Low | Telecommunication boards |
| Aluminum Core | 1 – 8 | 4.0 – 4.5 | 150 – 160 | Medium | Automotive lighting, power devices |
| Ceramic | 170 – 230 | 8.5 – 9.0 | 1300 | High | Aerospace, power electronics |
4. Applications of Different PCB Materials
Each material fits specific needs:
- FR-4: Found in consumer electronics like TVs and wearable devices.
- CEM1 and CEM2: Budget-friendly options for everyday electronic boards.
- Metal Substrates: Handle heat-intensive applications in automotive and LED lighting.
- Ceramic: Ensures reliability in power electronics and high-frequency equipment.
5. Trends in PCB Material Development
The PCB industry is evolving to meet technological demands:
- High-Frequency PCBs: Driven by the rise of 5G and IoT applications.
- Flexible Materials: Enabling foldable devices and wearable technology.
- Environmentally Friendly Alternatives: Meeting regulatory standards while reducing environmental impact.
6. Environmental Considerations
PCB production must align with sustainability goals:
- Use of ROHS-compliant materials to reduce hazardous substances.
- Adoption of low-carbon manufacturing practices to minimize ecological impact.
7. Cost Analysis of PCB Materials
Balancing performance with cost is crucial for material selection. Below is a cost-performance analysis:
| Material | Thermal Efficiency | Electrical Performance | Mechanical Durability | Cost |
|---|---|---|---|---|
| FR-4 | Moderate | High | High | Low |
| CEM1/CEM2 | Low | Moderate | Moderate | Very Low |
| Metal Substrates | High | Moderate | High | Medium |
| Ceramic | Very High | Very High | Very High | High |
8. Frequently Asked Questions
What is FR-4 material?
FR-4 is a fiberglass and epoxy resin material, valued for its thermal stability and insulation properties, making it suitable for a wide range of PCBs.
Which PCB material is best for heat dissipation?
Metal substrates and ceramic are ideal for applications requiring effective heat management.
Are there sustainable PCB materials?
Yes, materials like FR1 and certain lead-free options are designed to be environmentally friendly.
9. Data and Statistics
Here’s a summary of performance data to aid material selection:
| Material | Max Operating Temperature (°C) | Environmental Compliance | Durability Rating |
|---|---|---|---|
| FR-4 | 150 | Yes | 8/10 |
| CEM1 | 120 | Yes | 6/10 |
| Metal Substrates | 200 | Yes | 9/10 |
| Ceramic | 1400 | Yes | 10/10 |
This detailed comparison simplifies decision-making, ensuring the right balance between cost, performance, and sustainability.
